Zhechi is a professional manufacturer of 90 degree quick connector. Our professional expertise in manufacturing 90 degree quick connector has been honed over the past 10+ years.This 90 degree quick connector can access equipment box, can also be selected according to the thread into the outlet for the internal thread of the electrical equipment, simply wave tube into the interface can be
Description of this 90 degree quick connector
The following is about 90 degree quick connector related, I hope to help you better understand 90 degree quick connector.
This 90 degree quick connector can access equipment box, can also be selected according to the thread into the outlet for the internal thread of the electrical equipment, simply wave tube into the interface can be.
The above for 90 degree quick connector. If you want to know more about metal cable gland, cable gland, etc., you can contact us.
Parameter of this 90 degree quick connector
The following is about 90 degree quick connector, I hope to help you better understand 90 degree quick connector.
|
Thread specification |
Metric teeth (Metric/EN50262), German teeth (PG) |
|
Product material: |
The use of UL certified nylon PA66 raw materials |
|
Product color |
Black (B), gray (G) |
|
Working temperature: |
-40℃~+ 85℃ |
|
Product characteristics: |
In the latch body of special design, handling just plug |
|
Thread specification |
Item NO. |
Corresponding wave tube |
Thread diameter |
Thread length |
Inside diamet
I mm
|
Outside diameter
B mm
|
Total Length D |
Height
H
|
|
|
D1 mm |
C mm |
||||||||
|
Metric standard |
|||||||||
|
M
|
M12*1.5 |
ZC-M12-E |
AD10.0 |
12 |
10 |
8.5 |
17 |
33.5 |
32 |
|
M16*1.5 |
ZC-M16-E |
AD13.0 |
16 |
10 |
12 |
20 |
36 |
34 |
|
|
M16*1.5 |
ZC-M16-E |
AD15.8 |
16 |
10 |
12 |
23 |
42 |
37.5 |
|
|
M20*1.5 |
ZC-M20-E |
AD15.8 |
20 |
10 |
15.5 |
23 |
42 |
37 |
|
|
M20*1.5 |
ZC-M20-E |
AD18.5 |
20 |
11 |
13.5 |
26.5 |
46 |
44 |
|
|
M20*1.5 |
ZC-M20-E |
AD21.2 |
20 |
12 |
14.8 |
29.5 |
50 |
49 |
|
|
M24*1.5 |
ZC-M24-E |
AD21.2 |
24 |
13 |
18 |
29.5 |
50 |
49 |
|
|
M25*1.5 |
ZC-M25-E |
AD21.2 |
25 |
13 |
14.8 |
29 |
46 |
49 |
|
|
M25*1.5 |
ZC-M25-E |
AD28.5 |
25 |
13 |
18 |
29 |
50 |
49 |
|
|
M32*1.5 |
ZC-M32-E |
AD34.5 |
32 |
15 |
24 |
44 |
67 |
67.5 |
|
|
M40*1.5 |
ZC-M40-E |
AD42.5 |
40 |
15 |
32 |
52 |
83 |
74 |
|
|
M50*1.5 |
ZC-M50-E |
AD54.5 |
50 |
16 |
39 |
64 |
88 |
86.5 |
|
|
M63*1.5 |
ZC-M63-E |
AD54.5 |
63 |
16 |
53 |
64 |
88 |
86.5 |
|
|
German standard PG |
|||||||||
|
PG |
PG7 |
ZC-PG7-E |
AD10.0 |
12.5 |
10 |
8.5 |
17 |
33.5 |
32 |
|
PG9 |
ZC-PG9-E |
AD13.0 |
15.2 |
10 |
12 |
20 |
36 |
34 |
|
|
PG11 |
ZC-PG11-E |
AD15.8 |
18.6 |
10 |
12 |
23 |
42 |
37 |
|
|
PG13.5 |
ZC-PG13.5-E |
AD18.5 |
20.4 |
11 |
13.5 |
26.5 |
46 |
44 |
|
|
PG16 |
ZC-PG16-E |
AD21.2 |
22.5 |
12 |
18 |
29.5 |
50 |
47 |
|
|
PG21 |
ZC-PG21-E |
AD28.5 |
28.3 |
12 |
24 |
37 |
57 |
55 |
|
|
PG29 |
ZC-PG29-E |
AD34.5 |
37 |
12 |
32 |
44 |
67 |
63 |
|
|
PG36 |
ZC-PG36-E |
AD42.5 |
47 |
12 |
36 |
52 |
83 |
70 |
|
|
PG48 |
ZC-PG48-E |
AD54.5 |
59.3 |
14 |
48 |
64 |
88 |
83 |
|

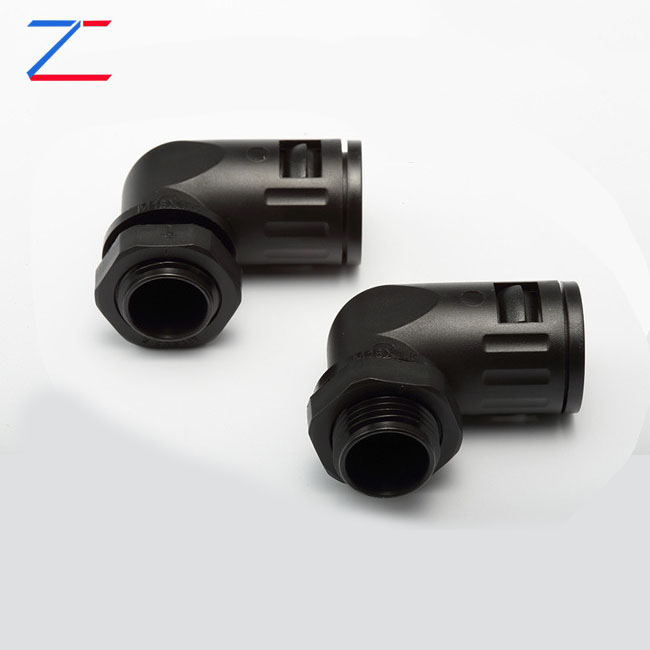

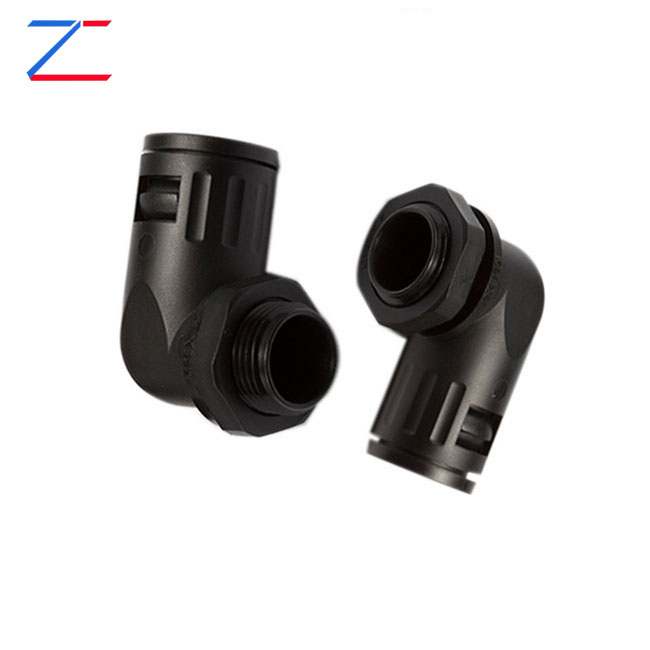

Image of this 90 degree quick connector
