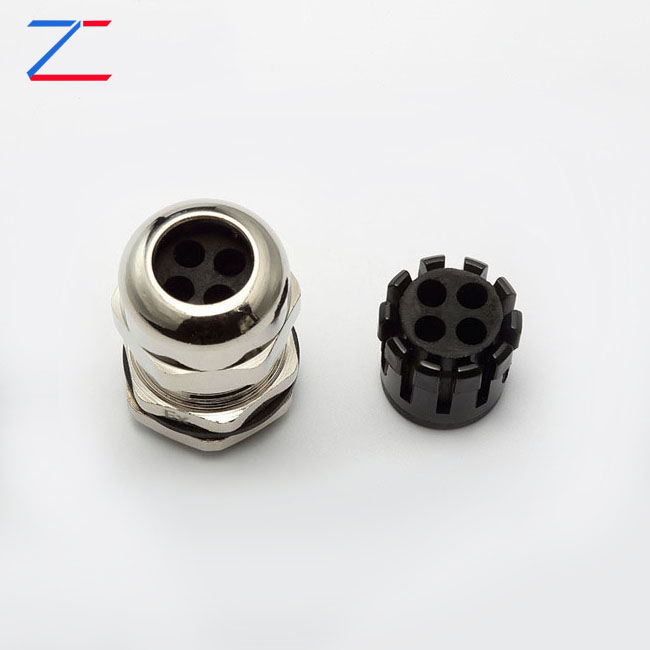

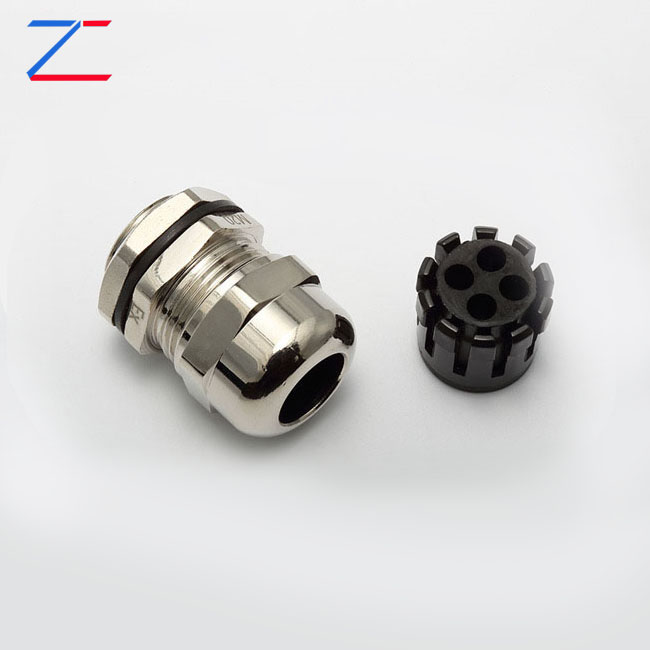

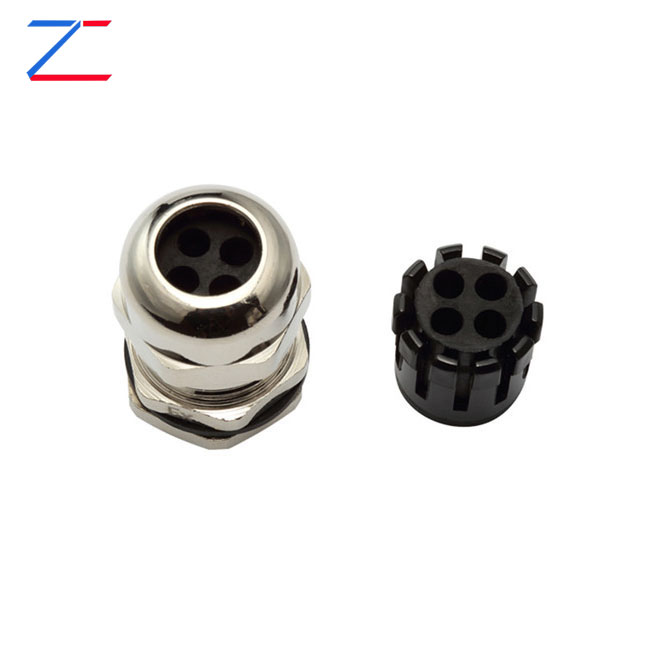

Zhechi is a professional manufacturer of Metal cable gland. Our expertise in manufacturing stainless steel wire membrane has been developed over the past 10 years. Multi-hole Metal cable gland (4 holes) is a wire-to-wire joint using wire mesh. It is also a suitable material for joining electric wires together, and can also be used as a connecting material for electric wires. Whether the electric wire insulation is used in general industry and in the field.
Multi-hole Metal cable gland (4 holes) are suitable for connecting cables and preventing them from pulling out. Cable glands are divided into different categories depending on whether they are used in general process industries or need to be protected against the risk of overheating and explosion. Glands are classified into armored and unarmored cables, which therefore require different types of glands. The sealing sleeve itself can be made of metals such as copper or aluminum, or of plastic. These materials are useful in a variety of environments.
The following isabout Multi-hole Metal cable gland, I hope to help you better understand it.
|
Thread specification： |
Metric thread, PG thread, G(PF) thread and NPT thread . |
|
Product description： |
Special clamping jaw and the design of the clamping ring, the wide range of the clamping cable, anti - tensile strength, waterproof, dust, salt, weak acid,Alcohol, oil, grease and general solvent. |
|
Protection level： |
The provisions of the bayonet range, and use the O shaped sealing ring and screw tight tight head, up to IP68-5Bar. |
|
working temperature： |
-40℃-100℃,Short-term up to +120℃. |
|
material： |
The A.C.F part is made of copper alloy nickel plated, Part E is made of UL recognized nylon PA66 (Fire rating UL94V-2).B and D parts are made of EPDM weather resistant rubber. |
|
Color： |
Metallic color |
|
Thread Size |
Cable Range |
Thread Diameter |
Length of Thread |
Spanner Diameter |
Packing |
|
|
∮ mm |
C1 mm |
C2 mm |
A&F mm |
Only/bag |
||
|
M |
M12 X 1.5 |
2 ~ 3 |
12 |
9 |
18 / 19 |
50 |
|
M16 X 1.5 |
3 ~ 4 |
16 |
15 |
22 / 22 |
50 |
|
|
M20 X 1.5 |
4.3 ~ 6 |
20 |
15 |
27 / 27 |
50 |
|
|
M25 X 1.5 |
6.4 ~ 8.7 |
25 |
15 |
33 / 33 |
50 |
|
|
M32 X 1.5 |
7.7 ~ 10 |
32 |
15 |
41 / 42 |
10 |
|
|
M40 X 1.5 |
7~ 9 |
40 |
20 |
50 / 52 |
10 |
|
|
11 ~ 13 |
40 |
20 |
50 / 52 |
10 |
||
|
PG |
PG 7 |
2 ~ 3 |
12.5 |
8.5 |
17 / 19 |
50 |
|
PG 9 |
2~ 3 |
15.2 |
9 |
22 / 19 |
50 |
|
|
PG 11 |
1.6 ~ 2.2 |
18.6 |
10 |
24 / 22 |
50 |
|
|
2 ~ 3 |
18.6 |
10 |
24 / 22 |
50 |
||
|
3 ~ 4 |
18.6 |
10 |
24 / 22 |
50 |
||
|
PG 13.5 |
3.5 ~ 5.2 |
20.4 |
10 |
27 / 24 |
50 |
|
|
PG 16 |
2.5 ~ 3.5 |
22.5 |
11 |
30 / 27 |
50 |
|
|
3.3 ~ 4.3 |
22.5 |
11 |
30 / 27 |
50 |
||
|
4 ~ 6 |
22.5 |
11 |
30 / 27 |
50 |
||
|
PG 21 |
3.6 ~ 5.2 |
28.3 |
13 |
36 / 33 |
50 |
|
|
5 ~ 6.5 |
28.3 |
13 |
36 / 33 |
50 |
||
|
6.4 ~ 8.7 |
28.3 |
13 |
36 / 33 |
50 |
||
|
PG 29 |
7.7 ~ 10 |
37 |
12 |
46 / 42 |
10 |
|
|
PG 36 |
7 ~ 9 |
47 |
15 |
57 / 52 |
10 |
|
|
11 ~ 13 |
47 |
15 |
57 / 52 |
10 |
||
|
G(PF) |
G 1/4 |
2 ~ 3 |
13.15 |
9 |
19 / 19 |
50 |
|
G 3/8 |
1.6 ~ 2.6 |
16.66 |
10 |
22 / 22 |
50 |
|
|
2~ 3 |
16.66 |
10 |
22 / 22 |
50 |
||
|
3 ~ 4 |
16.66 |
10 |
22 / 22 |
50 |
||
|
G 1/2 |
1.6 ~ 2.6 |
20.95 |
10 |
27 / 22 |
50 |
|
|
2 ~ 3 |
20.95 |
10 |
27 / 22 |
50 |
||
|
3 ~ 4 |
20.95 |
10 |
27 / 22 |
50 |
||
|
3.5 ~ 5.2 |
20.95 |
10 |
27 / 24 |
50 |
||
|
2.5 ~ 3.5 |
20.95 |
10 |
27 / 27 |
50 |
||
|
3.3 ~ 4.3 |
20.95 |
10 |
27 / 27 |
50 |
||
|
4.3 ~ 6 |
20.95 |
10 |
27 / 27 |
50 |
||
|
G 3/4 |
2.5 ~ 3.5 |
26.44 |
12 |
33 / 27 |
50 |
|
|
3.3 ~ 4.3 |
26.44 |
12 |
33 / 27 |
50 |
||
|
4.3 ~ 6 |
26.44 |
12 |
33 / 27 |
50 |
||
|
3.6 ~ 5.2 |
26.44 |
12.5 |
33 / 33 |
50 |
||
|
5.1 ~ 6.5 |
26.44 |
12.5 |
33 / 33 |
50 |
||
|
6.4 ~ 8.7 |
26.44 |
12.5 |
33 / 33 |
50 |
||
|
G 1 |
3.6 ~ 5.2 |
33.25 |
12 |
42 / 33 |
10 |
|
|
5~ 6.5 |
33.25 |
12 |
42 / 33 |
10 |
||
|
6.4 ~ 8.7 |
33.25 |
12 |
42 / 33 |
10 |
||
|
7.7 ~ 10 |
33.25 |
15 |
42 / 42 |
10 |
||
|
G 1 1/4 |
7 ~ 9 |
41.91 |
15 |
53 / 52 |
10 |
|
|
11 ~ 13 |
41.91 |
15 |
53 / 52 |
10 |
||
|
NPT |
NPT 3/8 |
1.6 ~ 2.6 |
17.05 |
13 |
22 |
50 |
|
2 ~ 3 |
17.05 |
13 |
22 |
50 |
||
|
3 ~ 4 |
17.05 |
13 |
22 |
50 |
||
|
NPT 1/2 |
2.5 ~ 3.5 |
21.22 |
13 |
27 |
50 |
|
|
3.3 ~ 4.3 |
21.22 |
13 |
27 |
50 |
||
|
4.3 ~ 6 |
21.22 |
13 |
27 |
50 |
||
|
NPT 3/4 |
3.6 ~ 5.2 |
26.57 |
15 |
33 |
50 |
|
|
5.1 ~ 6.5 |
26.57 |
15 |
33 |
50 |
||
|
6.4 ~ 8.7 |
26.57 |
15 |
33 |
50 |
||
|
NPT 1 |
7.7 ~ 10 |
33.23 |
17 |
42 |
10 |
|
If you want to know Multi-hole Metal cable gland (4 holes)more related products, such as nylon cable gland, and Stainless Steel Cable Gland… etc., you can contact us directly. We can provide you with more Stainless Steel Cable Gland, related information, or nylon cable gland, or brass cable gland… information sent to your e-mail.
Our factory has more experience in production Multi-hole Metal cable gland (4 holes)，and we can provide multiple types related products, such as nylon cable ties,Stainless Steel cable gland,Stainless Steel cable ties,Cable Clips,Insulated Terminal,etc. If you want to know more details about these, welcome to contact us!
We have standardization process in production Multi-hole Metal cable gland 4 holes), and ensuring our product’s quality.We have professional pre-sale team, they can answer your each questions, which are about nylon cable ties,Stainless Steel cable gland,Stainless Steel cable ties,Cable Clips,Insulated Terminal,etc.We have hard-working after-sales team, who are providing after-sales service and protection for our clients.
If you have some problems about Multi-hole Metal cable gland (4 holes), or want to know more details about nylon cable ties,Stainless Steel cable gland,Stainless Steel cable ties,Cable Clips,Insulated Terminal,etc.. welcome to contact us!
Looking forward to your inquiry for this Multi-hole Metal cable gland (4 holes).
