In the world of electrical and electronic applications, the importance of reliable and safe connections cannot be overstated. One of the most crucial components that ensures both safety and efficiency is the Insulated Terminal. These small yet indispensable parts are widely used in wiring systems across industries, ensuring secure connectivity while reducing the risks of electrical hazards.
Over the years, insulated terminals have evolved into different shapes, sizes, and materials, making them suitable for a wide range of applications. At Wenzhou Zhechi Electric Co., Ltd., we specialize in designing and manufacturing high-quality insulated terminals that meet international standards and offer excellent durability. But why is selecting the right insulated terminal so important? Let's dive deeper.
An insulated terminal is a connector used to join or terminate electrical wires, providing a protective layer of insulation around the conductive metal. This insulation helps prevent short circuits, accidental contact, and corrosion, ensuring that the electrical system remains both safe and efficient.
By using insulated terminals, technicians can achieve:
Secure wire connections without soldering.
Easy installation and maintenance.
Enhanced protection against moisture, dust, and vibration.
Prolonged lifespan of wiring systems.
Insulated terminals serve several critical purposes in electrical engineering:
Safety Enhancement – The insulated coating reduces the risk of accidental shocks or short circuits.
Durability – Prevents damage from environmental factors like humidity, dust, and heat.
Ease of Maintenance – Facilitates quick replacement or disconnection during repairs.
Versatility – Suitable for industrial machinery, automotive wiring, household appliances, and communication systems.
They are commonly used in:
Control panels
Power distribution systems
Automotive electrical systems
Consumer electronics
Renewable energy installations
To help customers choose the right type of insulated terminal, we provide a detailed set of specifications. Below is a simple table showcasing our product parameters:
| Parameter | Specification |
|---|---|
| Material (Conductor) | Copper with tin plating for conductivity |
| Insulation Material | PVC / Nylon / Heat-shrink |
| Wire Range | 0.25mm² – 10mm² (custom sizes available) |
| Temperature Resistance | -40°C to +105°C |
| Voltage Rating | 300V – 600V (depending on model) |
| Terminal Types | Ring, Spade, Pin, Fork, Butt, Bullet, etc. |
| Color Coding | Red, Blue, Yellow (indicating wire size) |
| Standards Compliance | RoHS / CE / UL approved |
This standardized information ensures that customers can match terminals with their wire gauges and project requirements, avoiding mismatched components that could compromise safety.
When installing any wiring system, selecting the correct insulated terminal directly impacts performance. Using undersized or oversized terminals may result in loose connections, overheating, or eventual failure of the system.
The right terminal ensures:
Secure crimping and connection stability.
Optimal current flow with minimal resistance.
Long-term reliability, even in demanding conditions.
For example, in automotive systems where vibrations are frequent, insulated ring terminals offer strong mechanical grip, reducing the risk of wires loosening. In contrast, for control panels requiring frequent maintenance, spade terminals are favored due to their ease of removal.
At Wenzhou Zhechi Electric Co., Ltd., we manufacture insulated terminals with attention to detail and customer needs. Our products stand out because they provide:
High Conductivity: Copper with tin plating minimizes energy loss.
Excellent Insulation: Premium PVC and nylon offer flame resistance and durability.
Wide Range: Multiple types and sizes fit various industrial, commercial, and domestic applications.
Compliance: All products are manufactured under strict quality control, ensuring conformity to international safety standards.
Choosing the correct type of insulated terminal depends on the application. Here are the most common:
Ring Terminals: Provide secure fastening to a stud or screw.

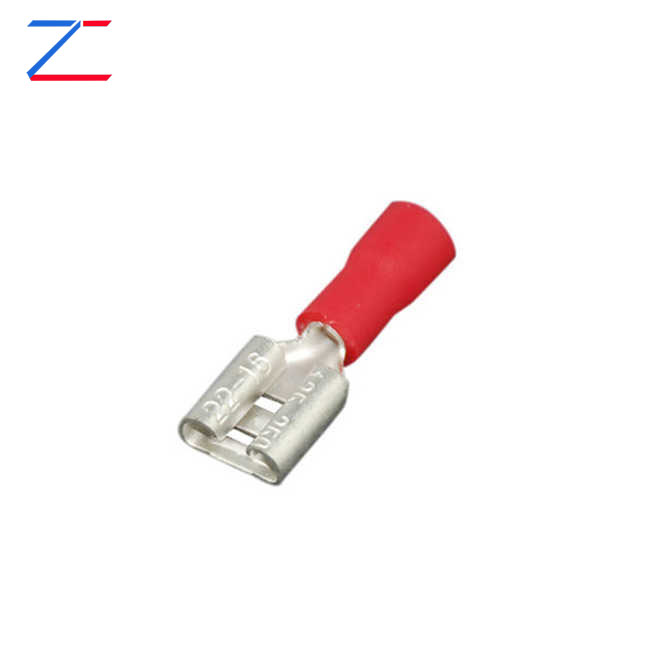

Spade Terminals: Allow quick connection and disconnection.
Pin Terminals: Fit into terminal blocks with ease.
Fork Terminals: Ideal where space is limited and frequent disconnection is needed.
Butt Connectors: Join two wires securely end-to-end.
Bullet Terminals: Enable fast, push-fit connections.
Each of these is color-coded to simplify identification and installation.
Q1: What is the main purpose of an Insulated Terminal?
A1: The primary purpose is to securely connect wires while preventing accidental contact, corrosion, or electrical faults. It ensures safety and reliability in wiring systems.
Q2: How do I choose the right size of Insulated Terminal?
A2: Match the terminal with your wire gauge and current requirements. Our products are color-coded (red, blue, yellow) to simplify the selection process.
Q3: Can Insulated Terminals withstand harsh environments?
A3: Yes. Our insulated terminals are made with durable copper and high-grade insulation materials such as nylon or PVC, which resist heat, moisture, and vibration.
Q4: Are your Insulated Terminals compliant with international standards?
A4: Absolutely. All our products comply with RoHS, CE, and UL certifications, ensuring they meet global safety and quality benchmarks.
Investing in the right Insulated Terminal is not just about connectivity—it is about ensuring safety, durability, and efficiency in every electrical application. From household systems to large-scale industrial installations, the right choice of terminal plays a vital role in preventing hazards and extending the lifespan of electrical systems.
At Wenzhou Zhechi Electric Co., Ltd., we are committed to providing premium insulated terminals that cater to diverse customer needs. With strict quality control, international certifications, and a wide product range, we deliver solutions you can trust.
For inquiries, product details, or bulk orders, please feel free to contact Wenzhou Zhechi Electric Co., Ltd.—your reliable partner in electrical connection solutions.
