I’ve been in the industrial components sector for longer than I care to admit. Over the years, if there’s one question I’ve heard more than any other, it’s this one. Choosing the wrong Metal Cable Gland isn't just an inconvenience; it can lead to equipment failure, safety hazards, and costly downtime. I’ve seen projects delayed by weeks because of a simple oversight in this critical component.
So, let’s cut through the confusion. This guide won’t just tell you to "measure your cable." We're going to dive deep into the practical steps and technical parameters that ensure you get it right the first time, every time.
Picking a Metal Cable Gland based on a gut feeling is a recipe for trouble. A professional selection is a data-driven process. You need to look at a complete picture of your application's demands. Here is a list of the non-negotiable factors
Cable Diameter: This is your starting point, but it's not as simple as a single measurement.
Thread Specification: The gateway to your enclosure must match perfectly.
Ingress Protection (IP) Rating: What are you keeping out? Dust, water, or high-pressure jets?
Material & Construction: The environment dictates the material.
Certifications & Approvals: Safety and compliance are not optional.
Let’s break down the first two, which are the most common pain points, in more detail.
This is where most mistakes happen. You cannot eyeball this. You need a digital caliper. If you don’t have one, get one. It’s the best investment you’ll make for this process.
Measure the Outer Diameter (OD): Strip a small section of your cable to expose the outer sheath. Do not measure the jacket of an un-stripped cable.
Take Multiple Measurements: Cables are not always perfectly round. Measure the diameter in a few different places and rotate the caliper.
Identify the Range: Use the largest measurement you find. A Metal Cable Gland is designed to clamp down onto a range of sizes.
To make this visual, here is a table showing a common cable size and the corresponding Zhechi Metal Cable Gland part number we would recommend. Notice the range.
| Cable Outer Diameter (mm) | Recommended Zhechi Gland Series | Thread Size (PG) |
|---|---|---|
| 8 - 13 mm | Zhechi PG Series | PG 9 |
| 12 - 18 mm | Zhechi PG Series | PG 11 |
| 15 - 22 mm | Zhechi PG Series | PG 16 |
| 15 - 25 mm | Zhechi M Series | M 20 |
| 20 - 30 mm | Zhechi M Series | M 25 |
The thread is how your gland interfaces with the enclosure. Getting this wrong means it simply won't screw in. I’ve witnessed entire shipments rejected because of a thread mismatch. The two most common types are Metric (M) and NPT (National Pipe Tapered).

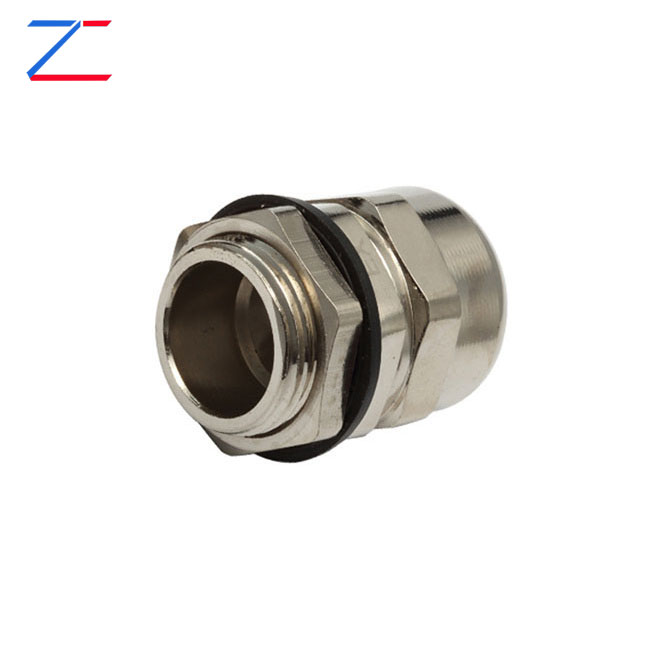

Metric (M) Threads: These are parallel threads. They seal via an O-ring or a sealing washer. They are common in Europe and Asia and are defined by their nominal diameter (e.g., M20, M25).
NPT Threads: These are tapered threads. The thread itself forms a seal as it is tightened, often with the help of thread sealant tape. They are the standard in North America.
Mixing them up is impossible if you know what to look for. Here’s a quick comparison
| Feature | Metric (M) Thread | NPT Thread |
|---|---|---|
| Profile | Parallel | Tapered |
| Sealing Method | O-ring / Washer | Thread Deformation / Sealant |
| Common Regions | Europe, Asia, Worldwide | North America |
| Identification | Measures consistent diameter | Diameter changes from root to crest |
For your project, you must check the technical drawing of your cabinet or junction box. Do not assume.
I spend a lot of time on factory floors and in meetings with engineers. These are the three most frequent questions I get asked about our products.
What is the temperature range for a standard Zhechi stainless steel Metal Cable Gland

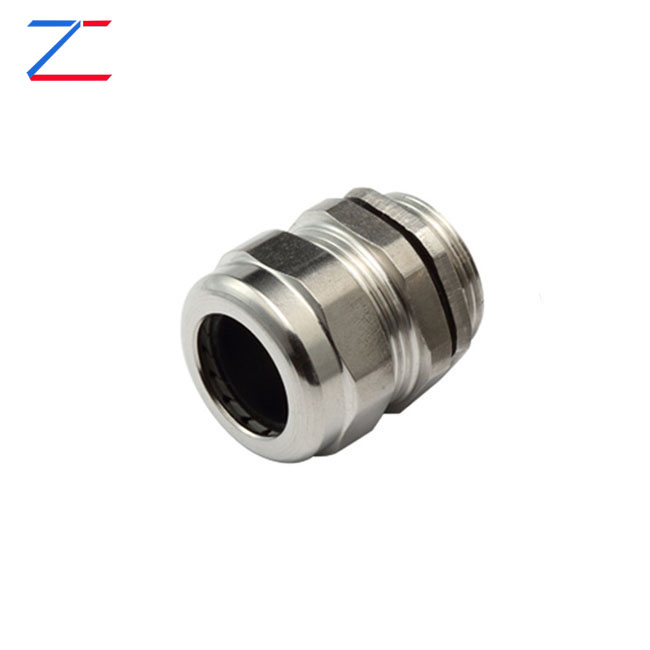

Our standard 316 stainless steel Zhechi Metal Cable Gland can reliably operate in a temperature range from -60°C to +250°C. This makes it suitable for everything from cryogenic applications to high-heat areas near industrial machinery.
Can I use a brass Metal Cable Gland in a marine environment
While brass offers good corrosion resistance, for true marine or offshore environments with constant salt spray, we always recommend our 316 stainless steel variant. Brass is an excellent choice for most industrial and commercial settings, but stainless steel provides that extra layer of defense against pitting and accelerated corrosion that saltwater causes.
Does Zhechi offer dual-certified glands for both ATEX and IECEx
Yes, absolutely. Many of our flagship Zhechi Metal Cable Gland products carry dual certifications for ATEX and IECEx, meaning they are approved for use in explosive atmospheres in both European and international markets. This is a critical certification for oil and gas, mining, and chemical processing plants, and it’s a area where we have deep expertise.
Selecting the right Metal Cable Gland is a blend of precise measurement, understanding your environmental challenges, and knowing the technical specifications of your equipment. It’s a small component that carries a huge responsibility. By following this structured approach, you can move forward with confidence, knowing that your electrical systems are secure, safe, and built to last.
The details we've discussed are at the core of how we design every Zhechi product. We build them to solve these exact problems, ensuring that your project's integrity is never compromised by its smallest link.
If you’re working on a specific project and want direct, expert consultation, our engineering support team is ready to help. We can review your technical drawings, environmental challenges, and certification requirements to recommend the perfect Metal Cable Gland from our range.
Contact us today for a no-obligation consultation and let us help you secure your connections for the long term.
